Toro 117-7721 Auger Clutch Cable For 18″ Power Clear & Power Lite Snowblowers

Description

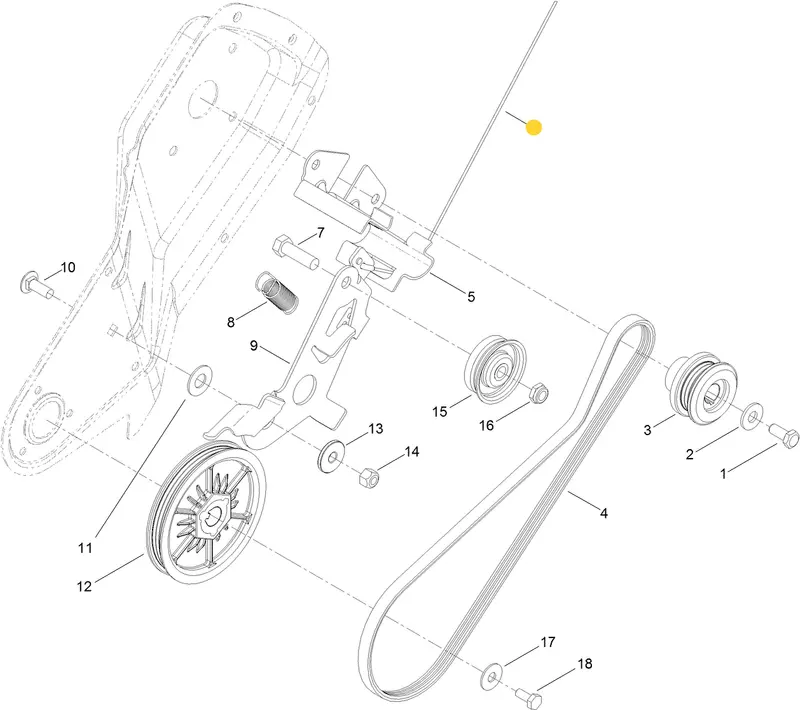

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 117-7721, 117 7721, 1177721
• PRODUCT TYPE: Auger/Rotor Clutch Cable
• SIZE: Length 4.000 in. – Width 4.000 in. – Height 0.200 in. – Weight 0.030 lbs.
• NOTES & DETAILS: Toro OEM  117-7712 IS COMMINLY USED – Inserts into the Idler Pulley Tensioner Arm as well as the Clutch Spring/Cable Adjuster Plate and Tightens the Belt when the Operator Engages the Auger/Rotor Bail Handle or Upper Handle Clutch Bail – The Tightening Action of the Cable and Belt Engages the Auger/Rotors.
• COMMON SERIES APPLICATIONS: Toro Select 18″ Powerlite & Power Clear Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S



POWERLITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)



• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7721 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

* Select Model Only Refer to Associated Model Under Each Part Number

1. 117-7735 – AUGER/ROTOR TENSIONER IDLER ARM (Connects to the Auger/Rotor Clutch Cable and Contain an Idlers Pulley That Rest Against the Auger Belt when tightened – 117-7735 Pivots when pulled by the cable as the Operator Engages the Auger/Rotor Clutch Handle) x1 Per Auger/Rotor Clutch Cable
2. 136-7126 – CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into – 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
3. 119-2907 – BELT and CABLE GUIDE (Installed on the Frame of the Snow Blower – Aguer/Rotor Clutch Cable Feeds through the Belt/Cable Guide, Enabling the Cable to Rest against the Smooth Rounded Surface of the Bottom Side of the Belt/Cable Guide as well as be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable) x1 Per Auger/Rotor Clutch Cable

*Select Model Only Refer to Associated Model Under Each Part Number





1. 136-7123 – AUGER/ROTOR TENSIONER IDLER ARM (Connects to the Auger/Rotor Clutch Cable and Contain an Idlers Pulley That Rest Against the Auger Belt when tightened – 117-7735 Pivots when pulled by the cable as the Operator Engages the Auger/Rotor Clutch Handle) x1 Per Auger/Rotor Clutch Cable
2. 136-7126 – CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into – 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
3. 136-7142 – BELT and CABLE GUIDE (Installed on the Frame of the Snow Blower – Aguer/Rotor Clutch Cable Feeds through the Belt/Cable Guide, Enabling the Cable to Rest against the Smooth Rounded Surface of the Bottom Side of the Belt/Cable Guide as well as be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable) x1 Per Auger/Rotor Clutch Cable
