Toro 139-0598 Fuel Line Replacement Kit For 900 & 1000 Series Power Max Snowblowers

Description

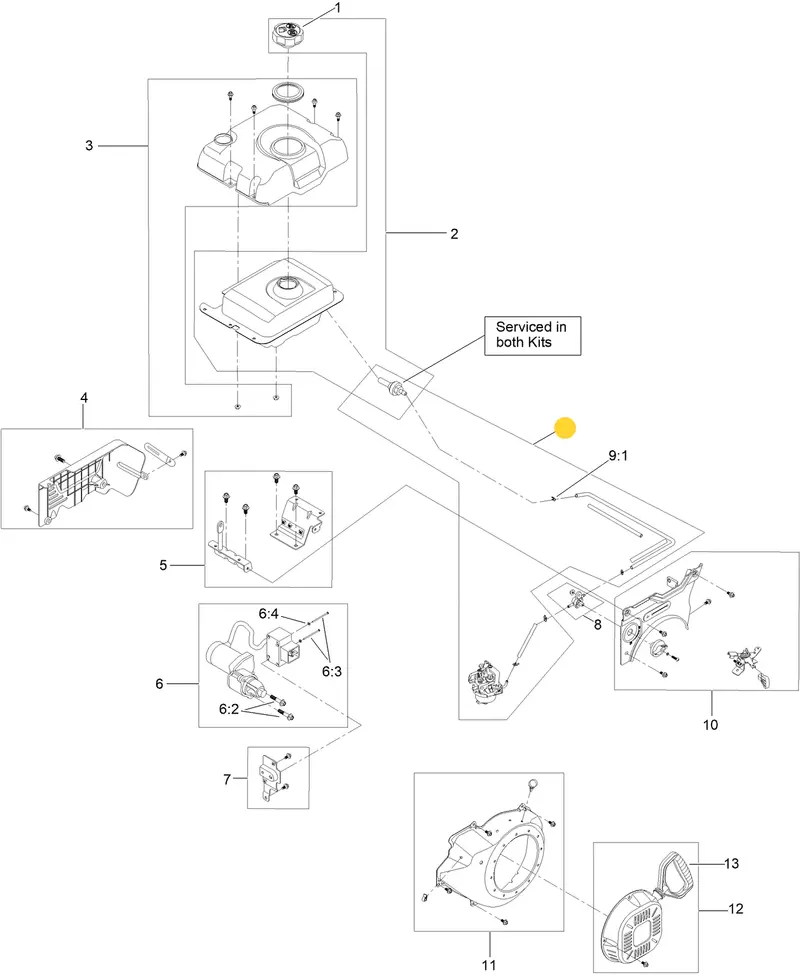

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Numbers 121-0353 & 136-7801 Supersede to Part Number 139-0598.

• PRODUCT NUMBER AND VARIATIONS: 139-0598, 139 0598, 1390598, 136-7801, 136 7801, 1367801, 121-0353, 121 0353, 1210353
• PRODUCT TYPE: Fuel Line Kit
• SIZE: Length N/A in. – Width N/A in. – Height N/A in. – Weight 0.084 lbs.
• NOTES & DETAILS: Toro OEM  139-0598 IS COMMINLY USED – 139-0598 Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl. Fuel Line is a Two-Piece Fuel Line and Connects – Firsts Section of Fuel line – Connects between the Lower End of the Tank Fuel Filter (Which Screws int the Bottom of the Fuel Tank) and the Fuel Shut-off Valve – Second Section of Fuel line – Connects between the Fuel Valve and the Carburetor. Fuel Line Kit Contains Fuel Line Hoses, Fuel Line Abrasive Sleeves, Tank Fuel Filter and Hose Clamps.
• COMMON SERIES APPLICATIONS: Toro Select Standard Power Max & Power Max HD Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S





POWER MAX Series – Model Numbers – (* Model Numbers 38660, 38661, 38662, 38663, 38664, 38674, 38801, 38802, 38806, 38820, 38822, 38823, 38824, 38826, 38830, 38833, 38834, 38836, 38840, 38841, 38850, 38855)





• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 139-0598 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

COMPLETE CARBURETOR ASSEMBLY

1. 121-0345 – Select 900 Series Power MAX Snow Blower Models.
2. 121-0359 – Select 1000 Series Power MAX Snow Blower Models.

ASSOCIATED COMPLETE PRIMER BULB KIT

1. 127-9372 – Select 900 & 1000 Series Power MAX Snow Blower Models (* Select Models and Serial Numbers Only – Review Part Number’s Model Fit Chart to Ensure Correct Fit)

COMMON FUEL LINE KIT INDIVIDUAL PARTS ONLY

(Models with Fuel Shut OFF Valve Only)

1. 127-9372 – PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine – Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit
2. 121-0087 – FUEL LINE CLAMP – CARB., FUEL VALVE, FUEL TANK (Retains the Incoming Fuel Line Hose to the Carburetor, Fuel Valve & Fuel Tank) x4 Per Carburetor
3. 139-0598 – FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl – Fuel Line Only Connects to the Lower End of the Tank Fuel Filter to the Fuel Valve and from there Connect from the Fuel Valve to the Carburetor – Fuel Filter Screws into the Bottom of the Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Tank Fuel Filter, Hose Clamps, Abrasive Sleeves are Include in the Kit
4. 127-9143 – CARBURETOR REPAIR KIT (Complete Rebuild Kit Comes with Carburetor Gasket and Necessary Internal Carburetor O-Rings and Other Part Required to Rebuild the Carburetor) x1 Per Carburetor
5. 121-4109 – FUEL VALVE (Enables the Operator to Eliminate Fuel Traveling to the Carburetor Bowl) x1 Per Fuel Tank
6. 127-9065 – TANK FUEL FILTER (Screws into the Bottom of the Fuel Tank and enable the Fuel Line Hose to Attach to the External Barb Style Fitting – Filtrates or Strains Fuel as it Leaves the Fuel Tank. Clogged Fuel Filtration will not Properly Allow Fuel to Travel to the Carb.) x1 Per Fuel Tank (* Select Models and Serial Numbers Only – Review Part Number’s Model Fit Chart to Ensure Correct Fit)
