Toro Primary Auger/Rotor Cable – 120-2338 Oem Upper Drive Cable For Snow Blowers

Description

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 120-2338, 120 2338, 1202338
• PRODUCT TYPE: Upper or Primary Auger/Rotor Cable
• SIZE: Length N/A – Width N/A – Height N/A – Weight 0.176 lbs.

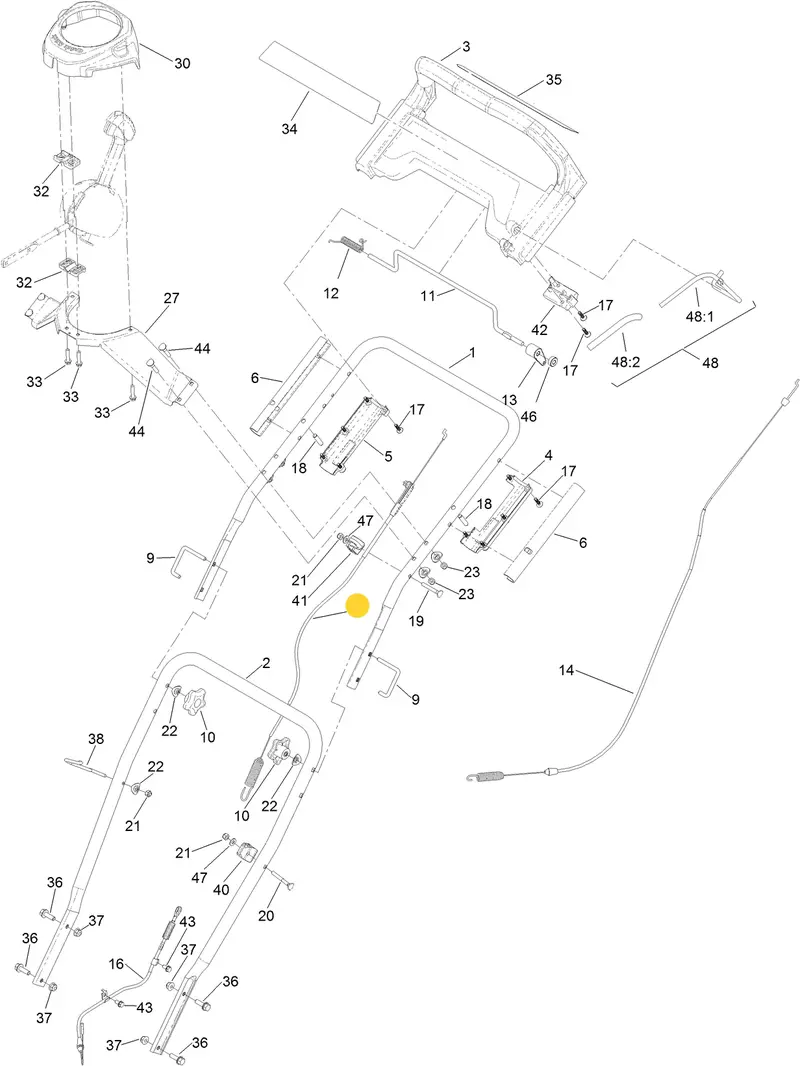

• NOTES & DETAILS: Toro OEM  120-2338 IS COMMINLY USED – 120-2338 Primary or Upper Auger Cable is a One of a Two-Part Cable System. – PRIMARY/UPPER AUGER CABLE – 120-2338 Upper or Primary Auger/Rotor Cable’s Hook or Shoe End Contains A plastic Clip that Clips in the Variable Speed Handle 131-5921 While the Hook or Shoe Hooks into the Operator’s Auger Bail Handle 120-2345-03 or Auger Bail Handle Assembly 131-5943 – (120-2338 Upper/Primary Auger Cable’s Lower Spring End Hooks Into The Eyelet of the Lower/Secondary Auger Cable 131-1753) – LOWER/SECONDARY AUGER CABLE – 131-1753 Lower or Secondary Auger/Rotor Cable Contains A Flanged Plastic Base that Slide into or Rest into a Slot or Whole in the frame by the Belt Cover above the Idler Pulley Arm while the Cable Hook or Shoe Hooks into the Idler Pulley Arm 131-5958. The Two Clamps that are Crimped or Assembled on the Lower Auger Cable Contain Bolts Holes that Use Bolt 32144-4 to retain the Cable to the Frame – 120-2338 & 131-0973 Auger Cable Enables Tightening/Engaging the Auger Belt 131-5967 when the Operator Engages the Auger/Rotor Bail Lever – The Tightening Action of the Cable and Belt Engages the Auger/Rotors. When Tension on the Bail Handle is Released the Return Spring on the Idler Pulley Releases Tension Between the Auger Belt and Idler Pulley 131-5929. Click on the Associated Part Numbers to Be Redirected.
• COMMON SERIES APPLICATIONS: Toro Select E – Snow Master, Snow Master, Snow Thrower, E – Snow Max & Snow MAX Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)



E-SNOW MASTER Series – Model Numbers – (* Model Numbers 39914, 39915, 39915T)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)



SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)



E-SNOW MAX Series – Model Numbers – (* Model Numbers 31860)
